Ion Exchange Resin Solutions for Hardness Removal in Zero Liquid Discharge (ZLD) Systems
As global environmental regulations continue to tighten, Zero Liquid Discharge (ZLD) has become an increasingly important solution for industrial wastewater management. Industries including coal chemical processing, metallurgy, power generation, and industrial parks are accelerating the adoption of ZLD systems to reduce wastewater discharge, improve water reuse efficiency, and support sustainable production goals.
Among the various challenges in ZLD operation, hardness removal remains one of the most critical steps for ensuring stable downstream membrane concentration and evaporation processes.
Leveraging extensive expertise in adsorption and separation technologies, Sunresin provides advanced ion exchange resin solutions for high-efficiency hardness removal in industrial ZLD wastewater treatment systems.
Understanding Zero Liquid Discharge (ZLD)
Zero Liquid Discharge refers to a wastewater treatment strategy in which industrial wastewater is highly concentrated and recycled so that virtually no liquid effluent is discharged from the plant.
In a typical ZLD process:
- Most water is recovered and reused
- Dissolved salts and contaminants are concentrated
- Final residues are discharged as solid waste or recovered as industrial raw materials
ZLD systems usually integrate multiple treatment technologies, including:
- Membrane separation
- Ultrafiltration
- Ion exchange
- Evaporation and crystallization
- Drying systems
The overall goal is to maximize water reuse while minimizing environmental discharge.
However, stable ZLD operation requires precise control of hardness ions such as calcium and magnesium, especially before membrane concentration and MVR evaporation systems.
Why Hardness Removal Is Critical in ZLD Systems
In industrial wastewater treatment, chemical softening is commonly used as a pretreatment step to remove a large portion of hardness through precipitation.
However, residual hardness often remains after chemical treatment.
Even relatively low concentrations of hardness ions can lead to:
- Membrane fouling
- Scaling in evaporation systems
- Reduced heat transfer efficiency
- Increased maintenance frequency
- Higher operating costs
As a result, high-precision hardness removal has become an essential step in many ZLD systems.
Ion exchange resin technology offers an efficient and economical solution for achieving ultra-low hardness levels before downstream concentration and evaporation processes.
Ion Exchange Resin Technologies for ZLD Hardness Removal
Currently, three major categories of ion exchange resins are widely used in ZLD wastewater hardness removal applications:
- Strong acid cation exchange resins
- Weak acid cation exchange resins
- Chelating resins
Each technology offers different advantages depending on water composition and process requirements.
Weak Acid Cation Resin: Preferred Solution for Industrial ZLD Applications
Among these technologies, weak acid cation exchange resins have become one of the most widely used solutions for industrial ZLD wastewater softening due to their high removal efficiency, easy regeneration, and economical operating cost.
Sunresin offers high-performance weak acid cation exchange resins including:
These resins are designed for high-efficiency hardness removal under complex industrial operating conditions.

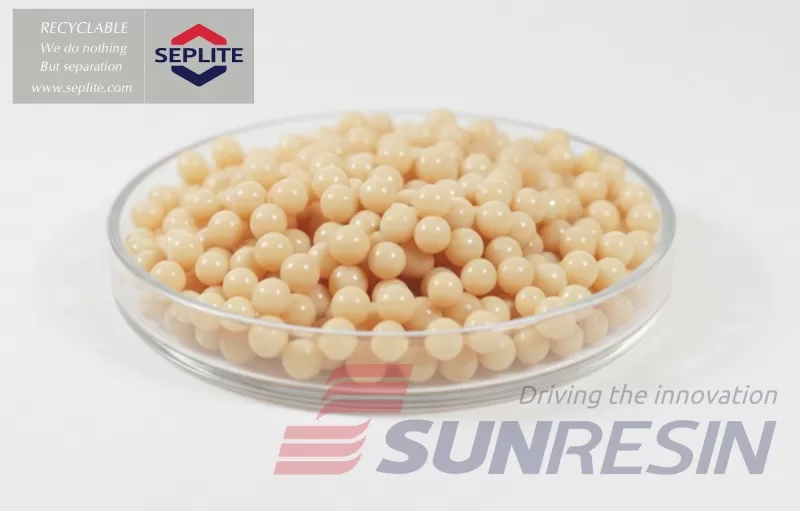

(SEPLITE® MC290 Resin)

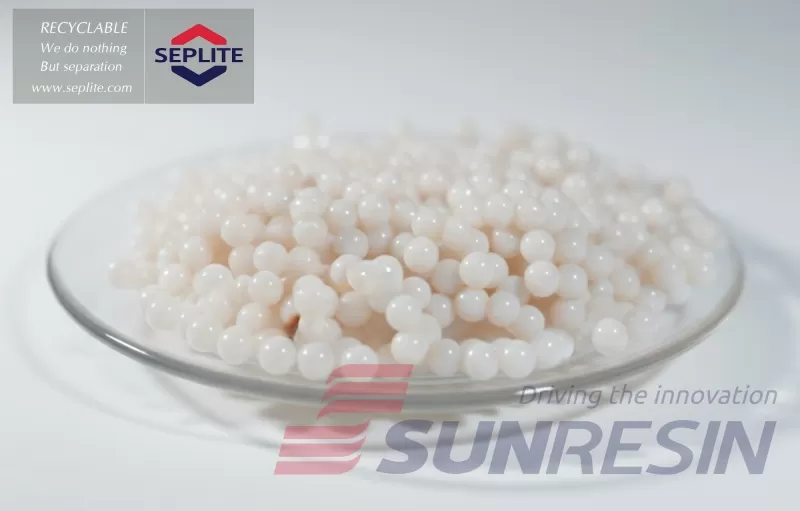

(SEPLITE® LSF983 Resin)
After conventional chemical pretreatment, Sunresin weak acid cation resins can further reduce hardness concentrations from tens or even hundreds of ppm to:
- Below 5 ppm in typical applications
- As low as 1–2 ppm under relatively simple water composition conditions
This level of hardness control helps protect downstream membrane and evaporation systems while improving long-term operational stability.
Advantages of Sunresin Weak Acid Cation Resins
High-Precision Hardness Removal
Sunresin weak acid cation resins provide highly efficient hardness removal performance, making them suitable for pretreatment before RO concentration systems and evaporators.
The low residual hardness level significantly reduces scaling risks in downstream equipment.
Easier Regeneration and Lower Operating Cost
Compared with some conventional softening technologies, weak acid cation resins offer relatively easy regeneration through acid and alkali treatment.
This enables:
- Stable operating performance
- Lower chemical consumption
- Reduced operating costs
- Longer service cycles
As a result, weak acid cation resins have become one of the preferred technologies for industrial wastewater softening in ZLD systems.
Improved Protection for Membrane and Evaporation Systems
By reducing hardness to very low levels, ion exchange resin systems help:
- Minimize membrane fouling
- Reduce evaporator scaling
- Improve heat transfer efficiency
- Extend equipment operating cycles
- Lower maintenance frequency
This contributes to improved reliability and economics for the overall ZLD system.
Chelating Resins for Ultra-Low Hardness Applications
In certain high-salinity applications, especially before MVR evaporation systems, even lower hardness concentrations may be required.
Chelating resins are often used for high-precision polishing treatment and can reduce total hardness to approximately:
- 0.1 ppm
These resins are particularly suitable for concentrated brine systems where scaling control is critical.
Extensive Experience in Industrial Wastewater Treatment
As a leading company in separation and purification materials and system technologies, Sunresin has developed strong capabilities in ion exchange resin manufacturing, process integration, and industrial application engineering.
Sunresin products compete internationally with leading technologies from the United States and Japan, and have been widely recognized for their advanced technical performance and reliable application results.
Sunresin ion exchange resins and integrated systems have been exported to multiple international markets including:
- Europe
- United States
- Israel
- India
- Turkey
- Brazil
- Argentina
The company’s water treatment resins and system solutions have gained broad customer recognition through high product quality and professional technical support.
In industrial wastewater treatment and ZLD applications, Sunresin has accumulated extensive project experience across industries including:
- Coal chemical processing
- Metallurgy
- Environmental engineering
- Industrial parks
- High-salinity wastewater treatment
This experience enables Sunresin to provide customized hardness removal solutions for complex industrial wastewater systems.
Supporting Sustainable Water Reuse Through Advanced Separation Technologies
As industries continue pursuing water conservation and environmental compliance, ZLD systems are expected to play an increasingly important role in industrial wastewater management worldwide.
Efficient hardness removal remains one of the key factors for ensuring stable, economical, and long-term ZLD operation.
Through continuous innovation in ion exchange materials, adsorption technologies, and integrated separation systems, Sunresin remains committed to helping industrial customers improve water reuse efficiency and achieve sustainable environmental goals.
