Introduction to Sunresin’s Core-Shell Multimodal Chromatography Media
Application of Seplife Multimodal Chromatography Resins in Downstream Purification of Commercial Production of Virus Vaccines---Introduction to Sunresin’s Core-Shell Multimodal Chromatography Media
The Core-Shell multi-mode chromatography medium is a new multi-mode agarose chromatography medium independently developed by Sunresin Technology, used for purification and polishing of biological macromolecules such as viruses.
The chromatographic medium uses a new type of shell microsphere technology and octylamine ligand, and has dual functions of gel filtration and adsorption separation.

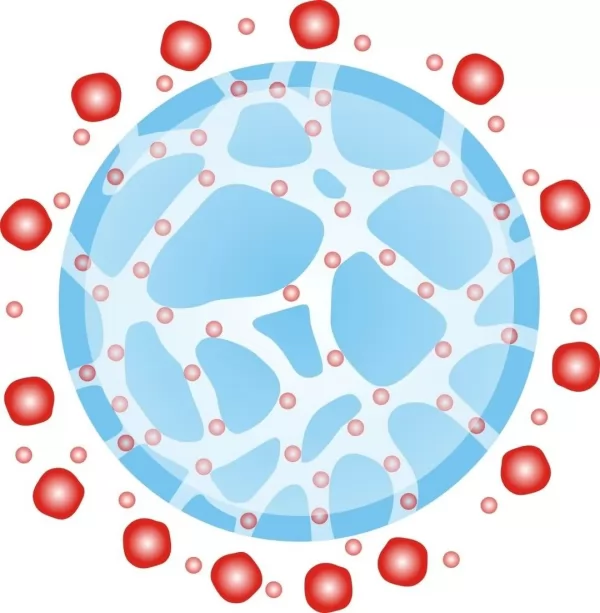

The core functional area is bound with a strong adsorption ligand, octylamine, which binds molecules under a wide range of pH and ionic strength by electrostatic force and hydrophobic force. At the same time, the outer layer of the core functional area has a shell layer of about 5um, with 700 KDa / 400 KDa gaps on the shell layer that are connected to the core functional area.
Sunresin’s new Core-Shell Multimodal chromatography can efficiently capture contaminants while allowing target molecules to flow through.
The Seplife® Suncore 700 / 400 chromatography resins have the characteristics of high flow rate, low back pressure, high throughput, good chemical stability and mechanical properties, which facilitate scale-up, shorten production time and improve production efficiency.
When the clarified solution flows through the column bed, biomolecules larger than 700 KDa/400 KDa are excluded from the “shell” and flow through the outer water volume, while biomolecules smaller than 700 KDa/400 KDa enter the core functional area through the gaps in the shell layer and are combined in the “core”, thus achieving the separation of ultra-large biomolecules and other biomolecules even in the state of higher flow rate and larger sample load.

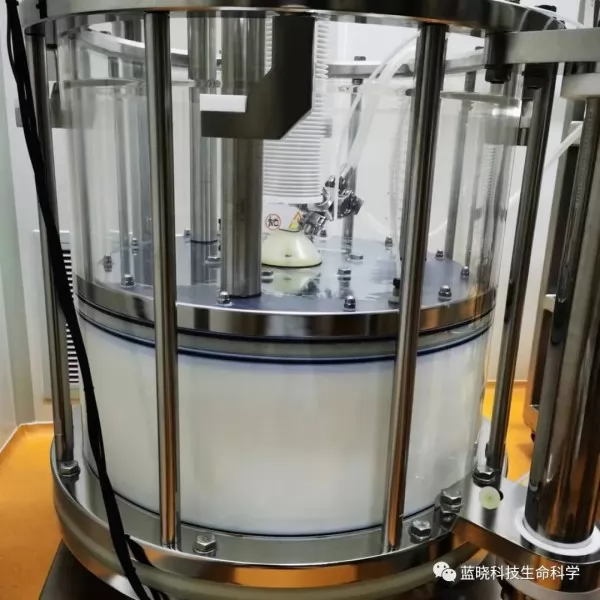

(Sunresin’s Seplife Suncore 400 multimodal resins purifying the virus vaccine in a 600mm chromatographic column.)
Core-Shell Multimodal Chromatography Media Technical Paremeters
| Product | Seplife Suncore 700 | Seplife Suncore 400 |
|---|---|---|
| Appearance | White spherical, odorless and tasteless | |
| Matrix | Fast flow agarose | |
| Ligand | Octylamine | |
| Type | Multimodal | |
| Exclusion range | >700 KDa | >400 KDa |
| Ion concentration | 40-85 Cl- umol/ml | |
| Particle size | 85μm | |
| Dynamic capacity | >13.0mg/ml (OVA) | >22.0mg/ml(OVA) |
| Working temperature | 4-30°C | |
| Flow rate | 500 cm/h (< 0.2Mpa, column height 20cm) | 700 cm/h (< 0.2Mpa, column height 20cm) |
| pH stability | 3~13 (Operational), 2~14 (CIP) | |
| Chemical stability | Stable to commonly used aqueous solvents: 1mol/L NaOH, 70% ethanol, 30% isopropyl alcohol, 6M Guanidine hydrochloride | |
| Storage | 20% ethanol, 4-30℃ | |
| Applications | Purification and polishing of biological macromolecules such as viruses | |
